Single Channel High Voltage Linear Amplifiers
Pendulum Instruments High Voltage Linear Amplifiers are general purpose broadband linear amplifiers having a fixed or variable amplification, and capable of bipolar or unipolar output. The amplifiers outputs are linear from DC up to Megahertz range, and exist in Single-Channel and Dual-Channel versions.
Pendulum Instruments High Voltage Linear Amplifiers are valuable tools, for research institutes, R&D labs and component manufacturing industries, in a wide range of applications. Common examples are driving piezo actuators, MEMS, OLEDs, liquid crystals, etc.
The amplifiers are designed to drive resistive and/or small capacitive loads. The output is equipped with a current limiting circuit that withstands accidental short-circuits.

Key Features:
• Ultra-linear Amplifiers from 70Vp-p up to 800Vp-p
• High output power, up to 2A output current
• High Bandwidth, up to 5 MHz
• High Slew rate, up to 500V/μs
• Low output impedance, down to 0.1 Ohm
• Wide range of models to suit any performance and/or budget demand
• Ultra-linear Amplifiers from 70Vp-p up to 800Vp-p
• High output power, up to 2A output current
• High Bandwidth, up to 5 MHz
• High Slew rate, up to 500V/μs
• Low output impedance, down to 0.1 Ohm
• Wide range of models to suit any performance and/or budget demand

F10A  High-Voltage Amplifier, 1-channel, 10x, ±100V 185mA

F20A  High-Voltage Amplifier, 1-channel, 20x, ±150V 150mA

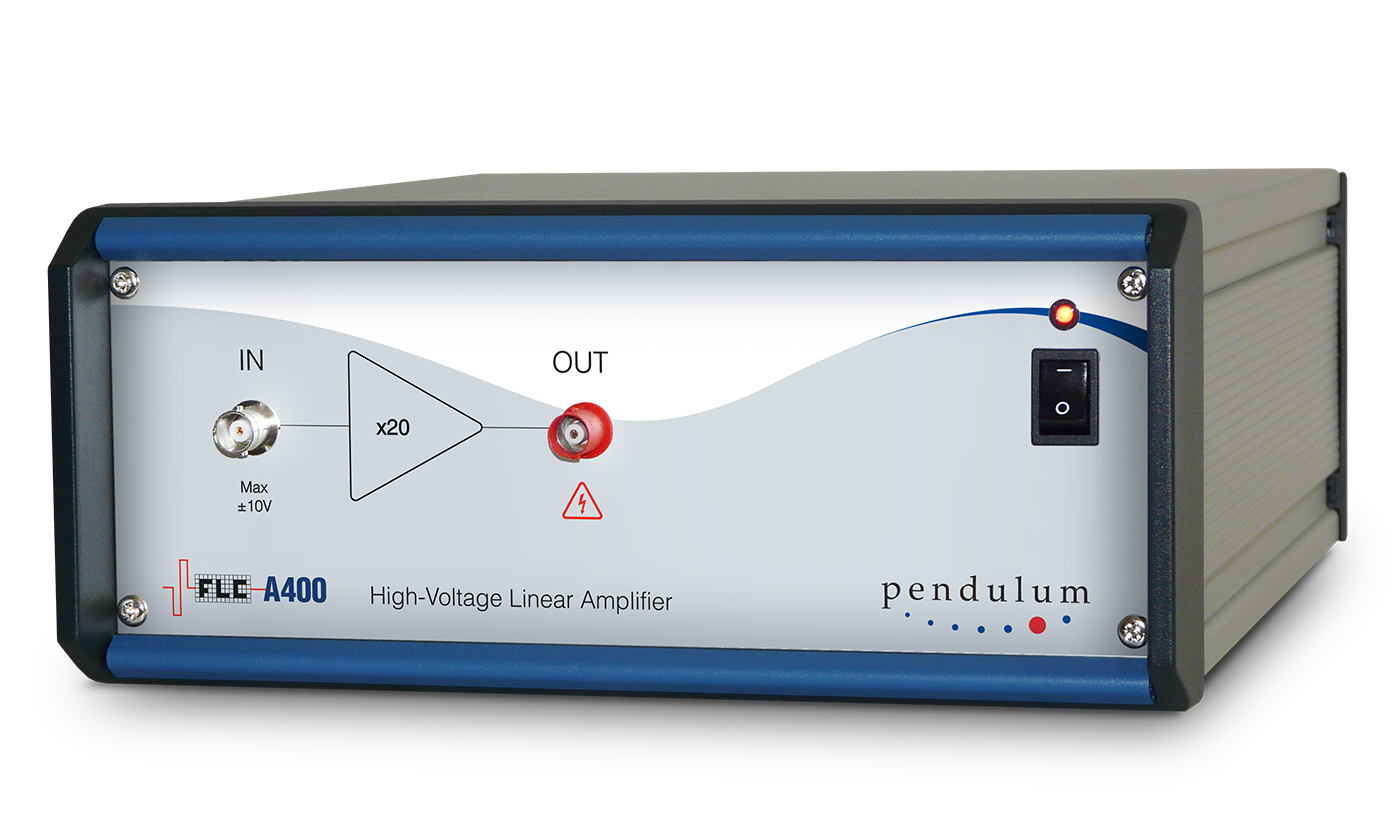

A400  High-Voltage Amplifier, 1-channel, 20x, ±200V 150mA

A600  High-Voltage Amplifier, 1-channel, 100x, ±300V 75mA

A800  High-Voltage Amplifier, 1-channel, 100x, ±400V 60mA

P100  High-Voltage & High-Current Amplifier, 1-channel, 10x, ±50V 2A

P150  High-Voltage & High-Current Amplifier, 1-channel, 20x, unipolar +150V 1A

P200  High-Voltage & High-Current Amplifier, 1-channel, 10x, ±100V 1A

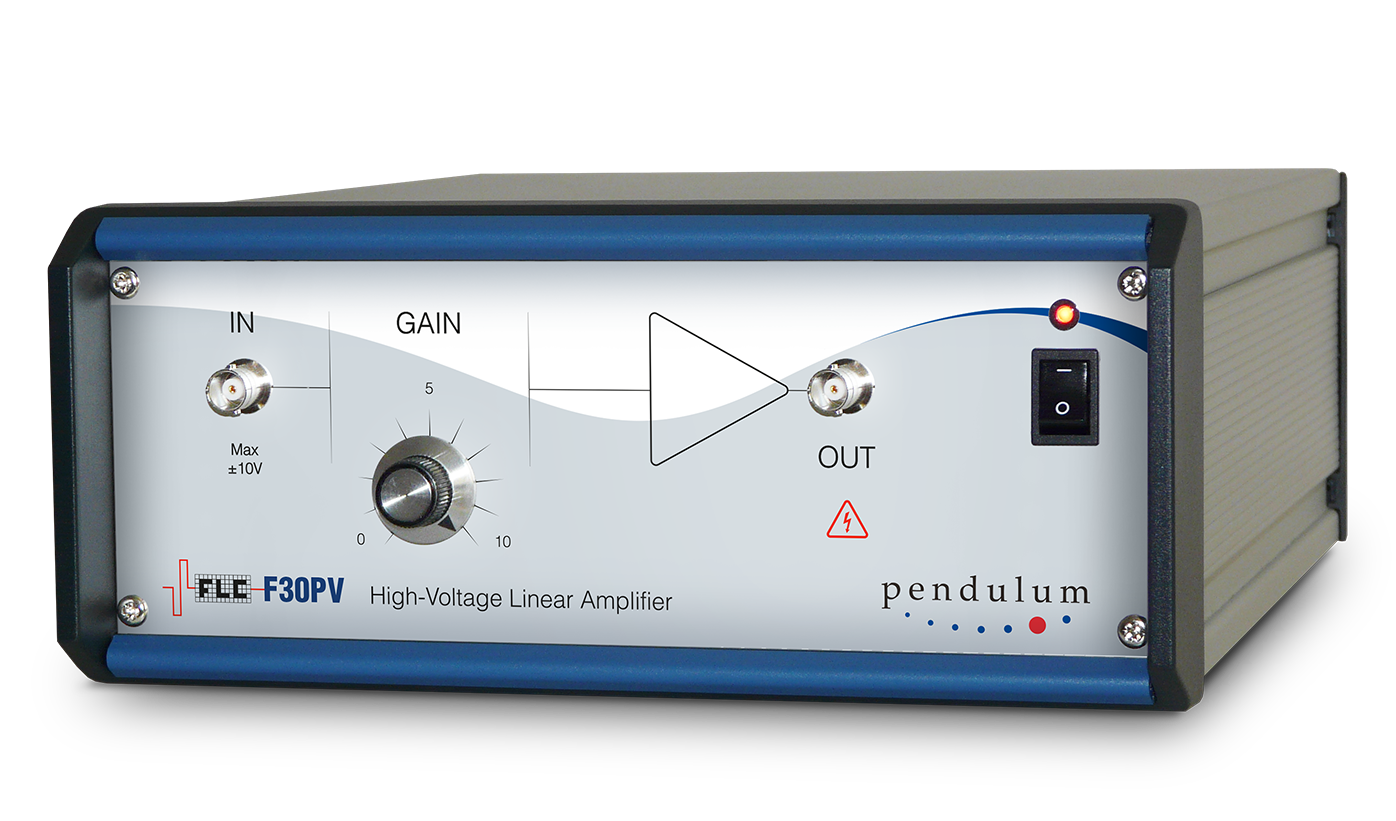

F30PV  High-Voltage & High-Speed Amplifier, 1-channel, 10x/variable, ±35V 1.5A

F70PV  High-Voltage & High-Speed Amplifier, 1-channel, 10x/variable, unipolar +70V 1.5A
