FDA-301A
Point-to-Multi-point Distribution Amplifier for reference frequency and time synchronization signals
Overview

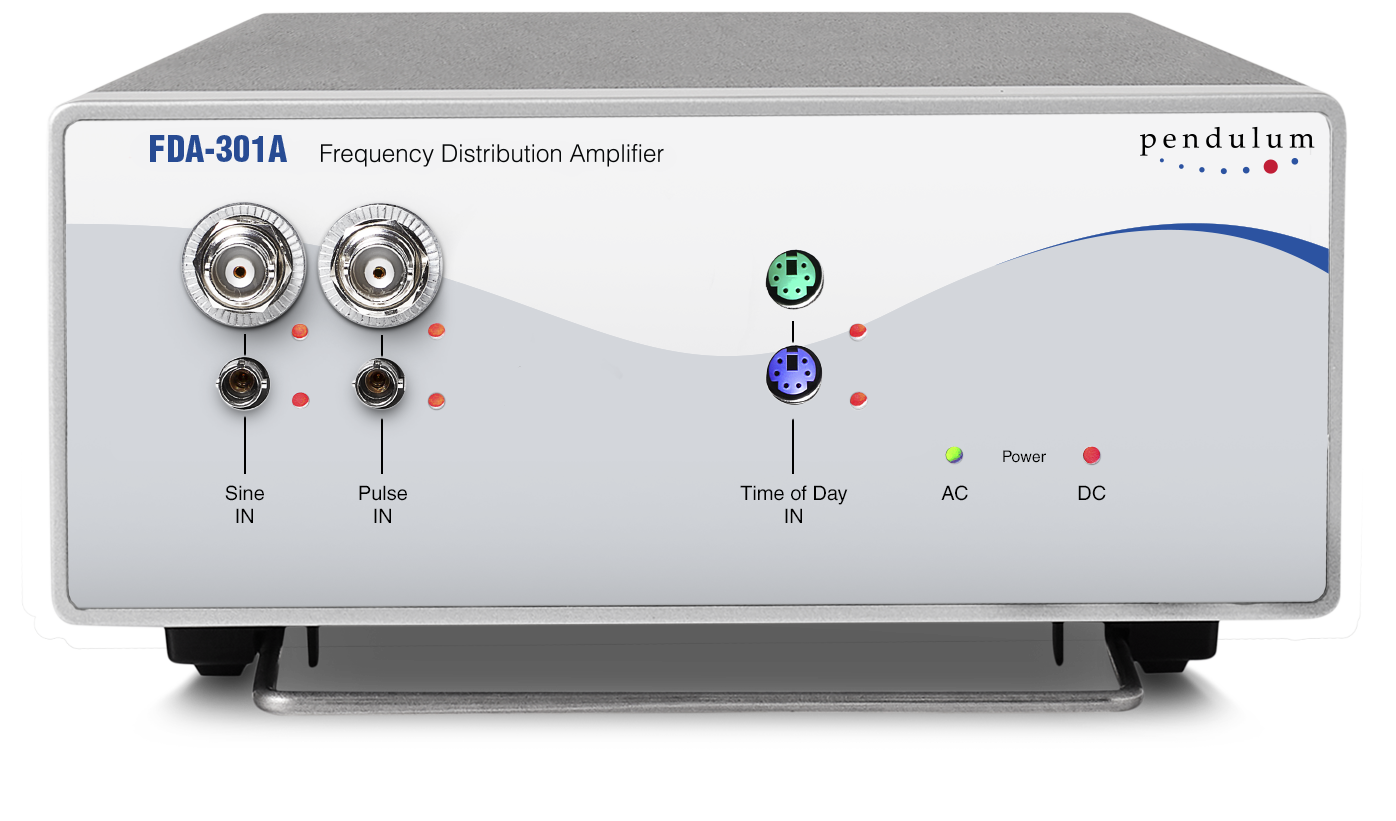

FDA-301A Point-to-Multi-point Distribution Amplifier for reference frequency and time synchronization signals
The Time & Frequency Distribution Amplifier FDA-301A is a very versatile fiber and coax Distribution Amplifier designed to distribute various signal types from a central frequency standard, and/or a central timing source, to multiple remote receiving points. It has a modular output design, with three output module slots at the rear, giving up to 18 fiber connections or 12 coax connections from a single unit.
Key features:
Distributes sine, pulse, and ToD signals over fiber and/or coax
- Narrowband sine input for distribution of reference frequency
- Pulse distribution of e.g. 1-pps or unmodulated IRIG time code
- 3 modular output slots provides easy upgradability in the field. Up to 18 fiber or 12 coax outputs
- No-noise and EMP-proof distribution over fiber
- Distribute up to 2 km over fiber
- Auto-change-over when connecting two input sources (Master-Slave)
- Optional DC power input for power redundancy
