Dual Channel High Voltage Linear Amplifiers
F10AD | F20AD | A400D | A400DI | A600D | A800D | A800DI
Overview
Dual Channel High Voltage Linear Amplifiers
Pendulum Instruments High Voltage Linear Amplifiers are general purpose broadband linear amplifiers having a fixed or variable amplification and capable of bipolar or unipolar output. The amplifiers outputs are linear from DC up to Megahertz range, and exist in Single-Channel and Dual-Channel versions.
Pendulum Instruments High Voltage Linear Amplifiers are valuable tools, for research institutes, R&D labs and component manufacturing industries, in a wide range of applications. Common examples are driving piezo actuators, MEMS, OLEDs, liquid crystals, etc.
The amplifiers are designed to drive resistive and/or small capacitive loads. The output is equipped with a current limiting circuit that withstands accidental short-circuits.
Key Features:
• Ultra-linear Amplifiers from 100Vp-p up to 1600Vp-p
• Two amplifiers in one box
• High Bandwidth, up to 1 MHz
• High Slew rate, up to 500V/μs
• Low output impedance, down to 0.1 Ohm
• Wide range of models to suit any performance and/or budget demand

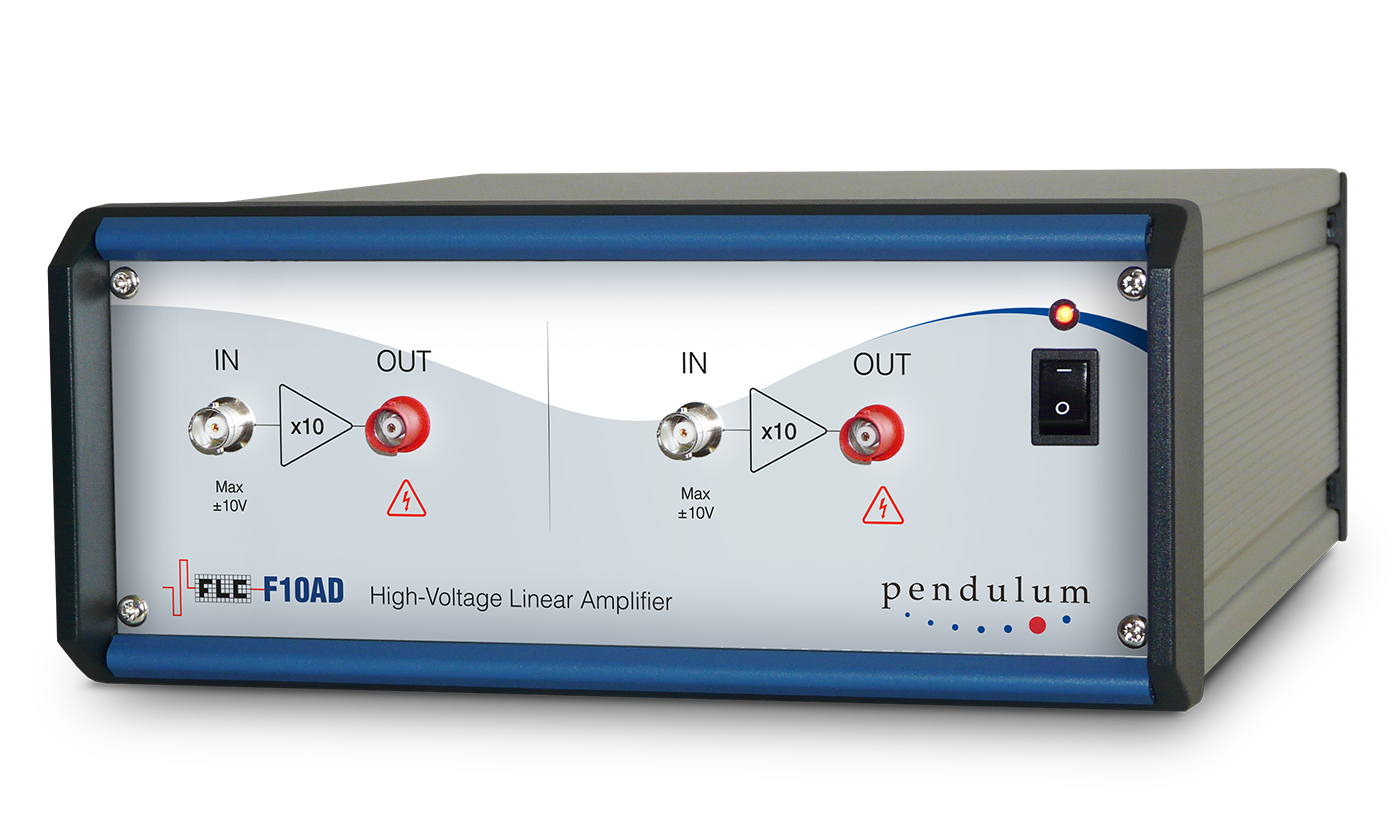

F10AD High-Voltage Amplifier, 2-channel, 10x, ±100V 185mA each
F20AD High-Voltage Amplifier, 2-channel, 20x, ±150V 150mA each
A400D High-Voltage Amplifier, 2-channel, 20x, ±200V 150mA each
A400DI High-Voltage Amplifier, 2-channel, 20x, ±200V, phase inv (800Vpp)
A600D High-Voltage Amplifier, 2-channel, 100x ±300V 75mA each
A800D High-Voltage Amplifier, 2-channel, 100x, ±400V 60mA each
A800DI High-Voltage Amplifier, 2-channel, 100x, ±400V 60mA, phase inv (1600Vpp)
