CNT-91R

Advanced Frequency & Time Interval Analyzer

Overview

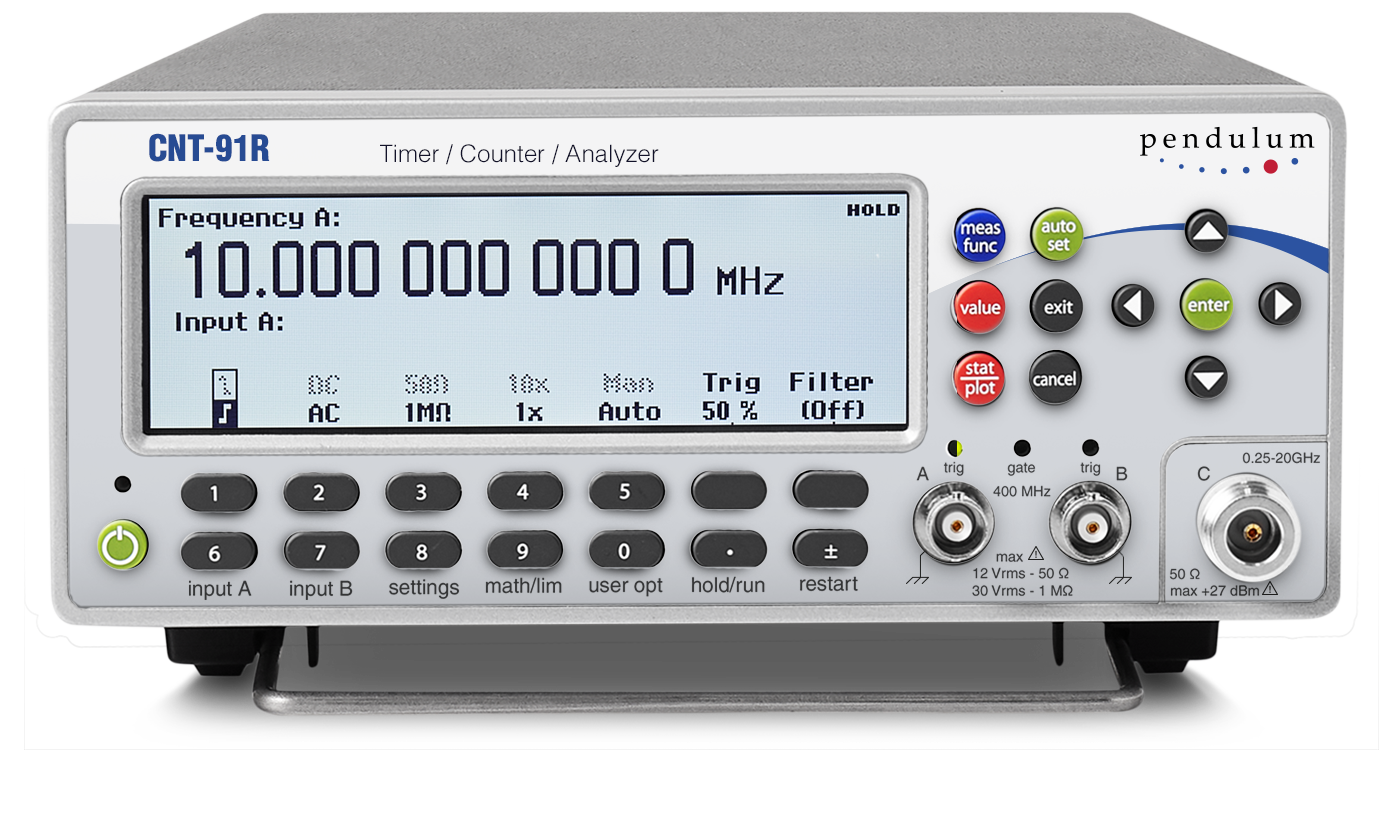

CNT-91R Frequency Calibrator/Analyzer

The CNT-91R Frequency Calibrator/Analyzer is an all-inclusive high performance calibrator of frequency sources, that combines high resolution measurements and advanced analysis, and a built-in ultra-stable Rubidium atomic reference clock. Its compact format, and its short warm-up time, make the CNT-91R an ideal transportable frequency calibrator/analyzer.

Key features:

  • Continuous Data Streaming over the bus during, not after, measuring
  • Zero-dead-time frequency/ period measurements
  • Fast GPIB/USB bus speed; 4k meas/sec in talker only mode 15k meas/sec in block mode
  • High resolution 50 ps-time; 12 digits/sec-frequency
  • Integrated Rubidium atomic clock
  • 8, 15 Ghz optional*
  • Graphic display; numerical statistics, histogram, trend & modulation domain
  • 250k meas/sec to internal memory 3.75M stored measurement results
  • Programmable Pulse Output from 0.5 Hz to 50 MHz

*Please note that only one of the build-in High-Frequency Input C options (option 13, option 14)





    Please fill out the form. Thank you!


    Clear selection
    Model
    CNT-91R
    CNT-91R
    $0.00
    8 GHz input option for CNT-90/91
    15 GHz input option for CNT-90/91
    Rear panel inputs for CNT-90 family (replaces front panel inputs).
    GPIB-to-Ethernet Controller. Plugs into the GPIB port of the CNT-9x and enables remote control via Ethernet
    TimeView 3 Modulation Domain Analysis software for CNT91/91R only. Includes CD-ROM and activation key. Trial version can be downloaded from Pendulum website.
    19" Rackmount kit for one CNT-9x, GPS-12x, or FDA-301A plus one Keysight ½*19" unit, side by side
    19" Rackmount kit for two CNT-9x, GPS-12x, or FDA-301A, side by side
    19" Rackmount kit for one CNT-9x, GPS-12x, or FDA-301A
    Soft Carrying case for CNT-9x, GPS-12x, or FDA-301A
    Heavy duty Transport case for CNT-9x, GPS-12x, or FDA-301A
    Time-base calibration certificate w. Protocol for CNT91R or 6689.
    Accredited ISO 17025 time-base Calibration certificate w. protocol, Rubidium oscillator, for CNT-91R, CNT-91R/AF,or 6689
    Two years Extended warranty to a total of 4 years (without product registration, or 5 years (with product registration). Cost: 12% of the order value, where order value = value of basic instrument and built in options.
