CNT-91

Timer/Counter/Analyzer

Overview

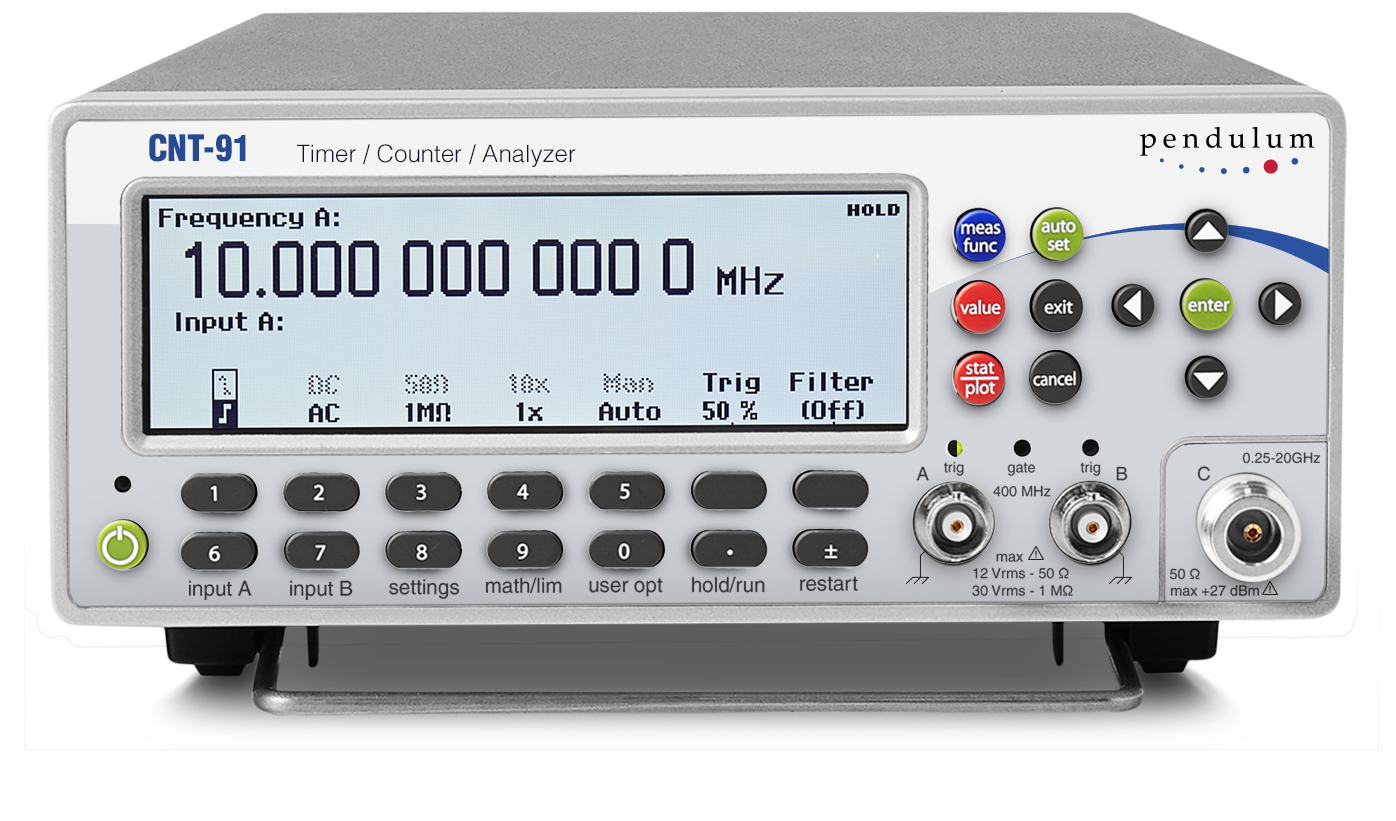

CNT-91 Advanced Frequency & Time Interval Analyzer

The CNT-91 Frequency Timer/Counter/Analyzer, is the highest performance counter for measurement, analysis and calibration of frequency, time interval and phase. In production test systems, R&D, calibration lab, or in the field; the CNT-91 outperforms any counter on the market for speed, resolution, statistical analysis and processing capabilities.

Key features:

  • Continuous Data Streaming over the bus during, not after, measuring
  • Zero-dead-time frequency/ period measurements
  • Fast GPIB/USB bus speed; 4k meas/sec in talker only mode 15k meas/sec in block mode
  • High resolution 50 ps-time; 12 digits/sec-frequency
  • 3, 8, 15 and 20 GHz optional*
  • High-stability and Ultra-stability OCXO oven oscillators optional*
  • Graphic display; numerical statistics, histogram, trend & modulation domain
  • 250k meas/sec to internal memory 3.75M stored measurement results
  • Programmable Pulse Output from 0.5 Hz to 50 MHz

*Please note that only one of the build-in High-Frequency Input C options (option 10, option 13, option 14, option 14B) and one of the Timebase oscillator options (option 30/90, option 40/90) can be installed in the instrument at the same time.

    Please fill out the form. Thank you!


    Clear selection
    Model
    CNT-91
    CNT-91
    $6,221.00
    3 GHz input option for CNT-90/91
    8 GHz input option for CNT-90/91
    15 GHz input option for CNT-90/91
    20 GHz input option for CNT-90/91
    High-stability OCXO, oven oscillator, option for CNT-90-family
    Ultra-stability OCXO, oven oscillator, option for CNT-90-family
    Rear panel inputs for CNT-90 family (replaces front panel inputs).
    GPIB-to-Ethernet Controller. Plugs into the GPIB port of the CNT-9x and enables remote control via Ethernet
    TimeView 3 Modulation Domain Analysis software for CNT91/91R only. Includes CD-ROM and activation key. Trial version can be downloaded from Pendulum website.
    19" Rackmount kit for one CNT-9x, GPS-12x, or FDA-301A plus one Keysight ½*19" unit, side by side
    19" Rackmount kit for two CNT-9x, GPS-12x, or FDA-301A, side by side
    19" Rackmount kit for one CNT-9x, GPS-12x, or FDA-301A
    Soft Carrying case for CNT-9x, GPS-12x, or FDA-301A
    Heavy duty Transport case for CNT-9x, GPS-12x, or FDA-301A
    Time-base calibration certificate w. Protocol, standard oscillator
    Time-base Calibration certificate w. Protocol, OCXO oscillator, for CNT-9x or 6688.
    Accredited ISO 17025 time-base Calibration certificate w. protocol, OCXO oscillator, for CNT-90, CNT-91, CNT-90XL or 6688
    Two years Extended warranty to a total of 4 years (without product registration, or 5 years (with product registration). Cost: 12% of the order value, where order value = value of basic instrument and built in options.
    Delivery cost per unit
