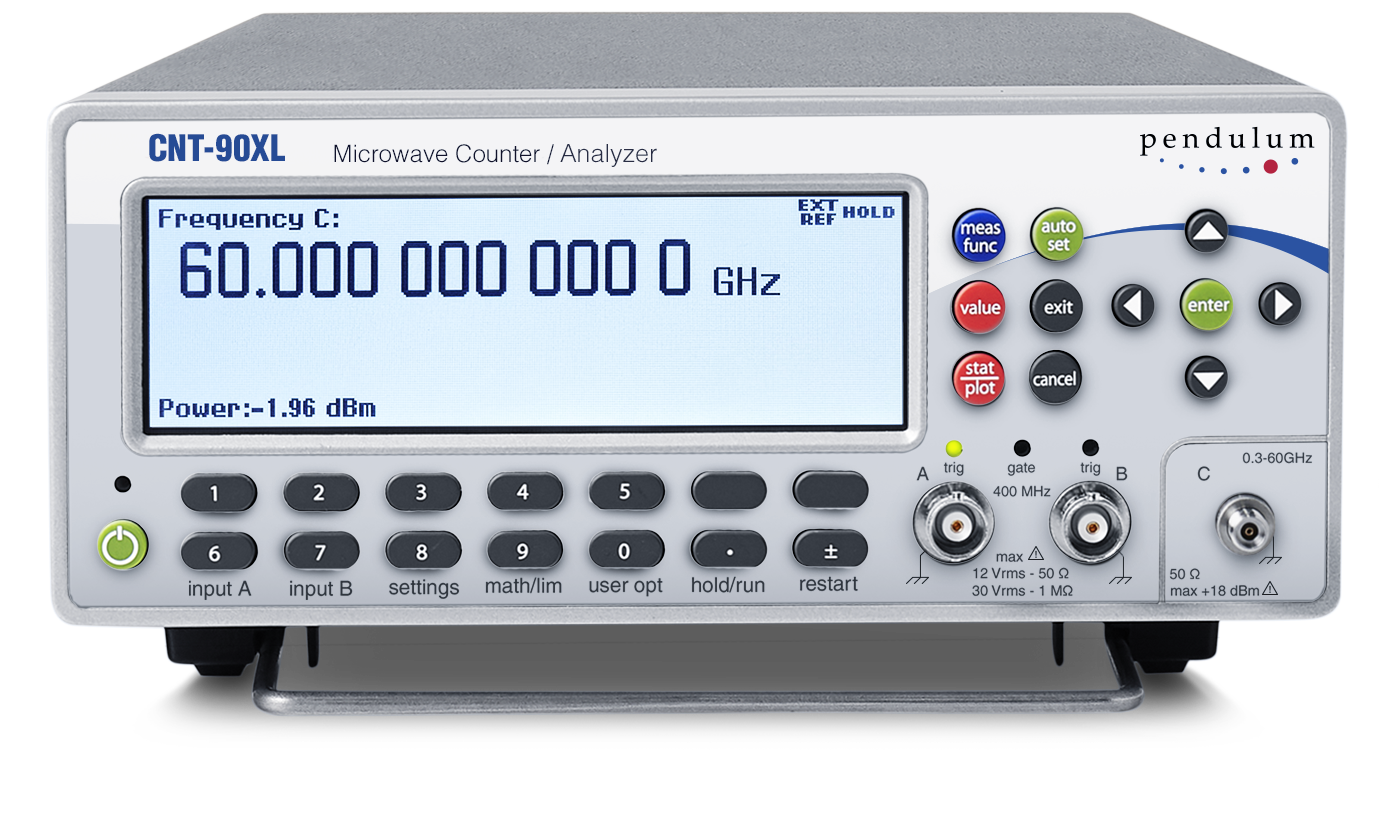

CNT-90XL series

Microwave Frequency Counter/Analyzer 27G/40G/46G/60G

Overview

The Pendulum CNT-90XL Pulsed RF Microwave Frequency Counter/Analyzer is an excellent tool for measurement, analysis and calibration of Microwave Frequency, Power, and Pulsed RF time parameters like pulse width and PRI. Whether in test systems, on the R&D bench, in the calibration lab or out in the field, the high-resolution and ultra-fast CNT-90XL is the state-of-the-art Microwave Counter/Analyzer. The pulsed RF option enables measurements of pulses down to 30 ns width, plus PRI/PRF, frequency in burst and power in burst making CNT-90XL ideal for radar test and calibration.

Key features:

  • Pulsed RF measurements down to 30 ns
  • Frequency, Power, CW or Burst to 27, 40, 46 or 60 GHz
  • High-stability and Ultra-stability OCXO oven oscillators optional*
  • Speed: 250k measurements/s to internal memory
  • Resolution: 14 digits display
  • Statistical analysis including histogram, trend & modulation domain display
  • Unique ease-of-use: Multiparameter display & graphical presentation of results • USB & GPIB as standard
  • 2 instruments in one – Microwave Counter/ Analyzer & 400 MHz general-purpose timer/ counter



*Medium Stability OCXO time base as standard; High-stability and Ultra-stability OCXO oven oscillators optional

    Please fill out the form. Thank you!


    Clear selection
    Model
    CNT-90XL/27G
    CNT-90XL/27G
    $0.00
    CNT-90XL/40G
    $0.00
    CNT-90XL/46G
    $0.00
    CNT-90XL/60G
    $0.00
    High-stability OCXO, oven oscillator, option for CNT-90-family
    Ultra-stability OCXO, oven oscillator, option for CNT-90-family
    Internal Battery operation for CNT-90, CNT-90XL
    Rear panel inputs for CNT-90 family (replaces front panel inputs).
    GPIB-to-Ethernet Controller. Plugs into the GPIB port of the CNT-9x and enables remote control via Ethernet
    Pulsed RF Software Option for CNT90XL. Provides following additional measurements: Frequency in burst, peak power in burst, pulse width, pulse repetition interval / frequency. Must be ordered together with the CNT-90XL and is not upgradable.
    TimeView 2 Modulation Domain Analysis software for CNT-90, CNT90XL and CNT91/91R. Includes CD-ROM and activation key. Trial version can be downloaded from Pendulum website.
    19" Rackmount kit for one CNT-9x, GPS-12x, or FDA-301A plus one Keysight ½*19" unit, side by side
    19" Rackmount kit for two CNT-9x, GPS-12x, or FDA-301A, side by side
    19" Rackmount kit for one CNT-9x, GPS-12x, or FDA-301A
    Soft Carrying case for CNT-9x, GPS-12x, or FDA-301A
    Heavy duty Transport case for CNT-9x, GPS-12x, or FDA-301A
    Time-base calibration certificate w. Protocol, standard oscillator
    Timebase Calibration certificate w. Protocol, TCXO oscillator
    Time-base Calibration certificate w. Protocol, OCXO oscillator, for CNT-9x or 6688.
    Accredited ISO 17025 time-base Calibration certificate w. protocol, OCXO oscillator, for CNT-90, CNT-91, CNT-90XL or 6688
    RF Power measurement calibration for CNT-90XL, with protocol. Separate calibration.
    RF Power measurement calibration for CNT-90XL, with protocol. Calibration combined with simultaneous order of timebase calibration Option 90/0X
    "Two years Extended warranty to a total of 4 years (without product registration, or 5 years (with product registration). Cost: 12% of the order value, where order value = value of basic instrument and built in options."
