CNT-104R

Multi-Channel Frequency Analyzer

Overview

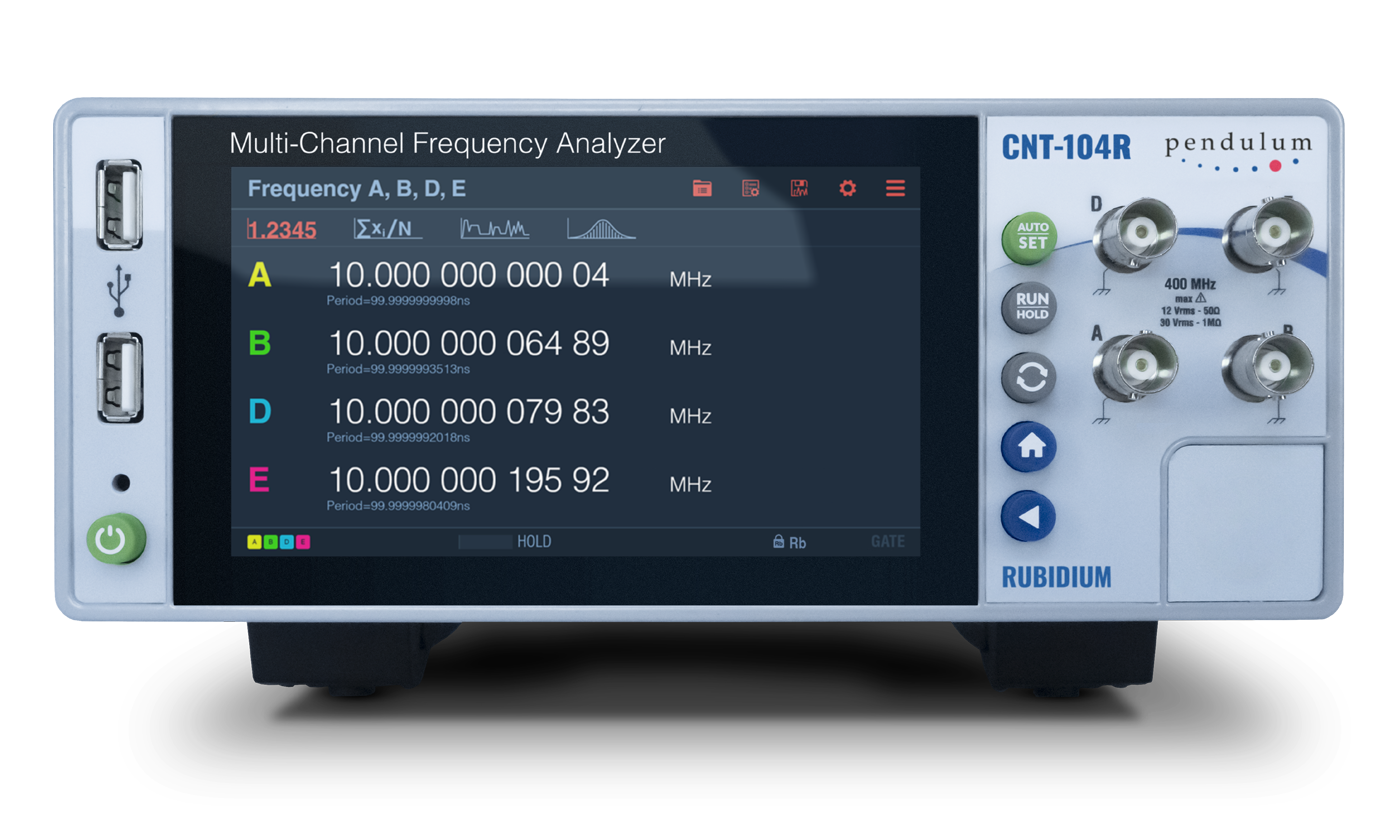

CNT-104R Multi-Channel Frequency Analyzer

The Pendulum CNT-104R is a new concept for super-performance multi-channel frequency and time-interval calibration and analysis, in a bench-top unit. It is a one-box Frequency and Time Interval calibrator combining an ultra-stable 10 MHz Rubidium Frequency Reference with a 4-channel advanced Frequency Analyzer. You can calibrate up to 4 oscillators/clocks in parallel simultaneously on 4 input channels.

The optional GNSS control of the Rubidium clock eliminates the small ageing drift giving unprecedented accuracy in a compact one-box solution. On the large graphic screen, you can watch drift over time and frequency distribution, as well as traditional numeric and statistics parameters. CNT-104R has gap-free measurements, <7 ps time resolution, 12-13 digits/s frequency resolution, and variable gate time setting from 50ns to 1000s.

One CNT-104R  can replace 4 traditional frequency counters plus a 10MHz frequency reference in a test system. The super-high-performance CNT-104R is the best fit for demanding metrology applications.

    Please fill out the form. Thank you!


    Clear selection
    Model
    CNT-104R
    CNT-104R
    $0.00
    3 GHz input option for CNT-90/91 and CNT-1xx
    10 GHz CW input option for CNT-100 NOTE: SW upgradable to 15, 20, and 24 GHz
    GNSS-disciplining oscillator option; zero aging / month. NOTE: Only available for CNT-104R
    Rear panel inputs A, B, D, E (replaces front panel inputs)
    Rear panel input C (replaces front panel input)
    SW upgrade from 10 to 15 GHz CW input option for CNT-100. NOTE: requires option 110. Also end user upgradable via license key
    SW upgrade from 15 to 20 GHz input option for CNT-100. NOTE: requires option 110 and option 110/15. Also end user upgradable via license key
    SW upgrade from 20 to 24 GHz input option for CNT-100. NOTE: requires option 110, and options 110/15 and 110/20. Also end user upgradable via license key
    Enable Programmable pulse output 0.5 Hz to 100 MHz (period from 10 ns, pulse width from 4 ns, 2 ns steps) Also end user upgradeable via license key
    Unlock TIE and Timestamp measurement function. Also end user upgradable via license key
    19" Rackmount kit for one CNT-9x, CNT-1xx, GPS-12x or FDA-301A plus one Keysight ½*19" unit, side by side
    19" Rackmount kit for two CNT-9x, CNT-1xx, GPS-12x or FDA-301A, side by side
    19" Rackmount kit for one CNT-9x, CNT-1xx, GPS-12x or FDA-301A
    Soft Carrying case for CNT-9x, CNT-1xx, GPS-12x or FDA-301A
    Heavy duty Transport case for CNT-9x, CNT-1xx, GPS-12x or FDA-301A
    Timebase aging measurement with report, per week. Available for CNT-9x, CNT-1xx, GPS-12x, GPS-88/89, 6688/6689. NOTE This option includes NO Timebase Calibration, which must be ordered separately
    Time-base calibration certificate w. Protocol, standard oscillator
    Timebase calibration certificate w. Protocol, Rubidium oscillators, for CNT91R, or 6689.
    Accredited ISO 17025 time-base Calibration certificate w. protocol, Rubidium oscillator, for CNT-91R, or 6689
    Two years Extended warranty to a total of 4 years (without product registration, or 5 years (with product registration). Cost: 12% of the order value, where order value = value of basic instrument and built in options.
    Printed Users Manual CNT-100 series, English
    Printed Programmers Manual CNT-100 series, English
    Service Manual CNT-100 series, English
