CNT-102

Multi-Channel Frequency Analyzer

Overview

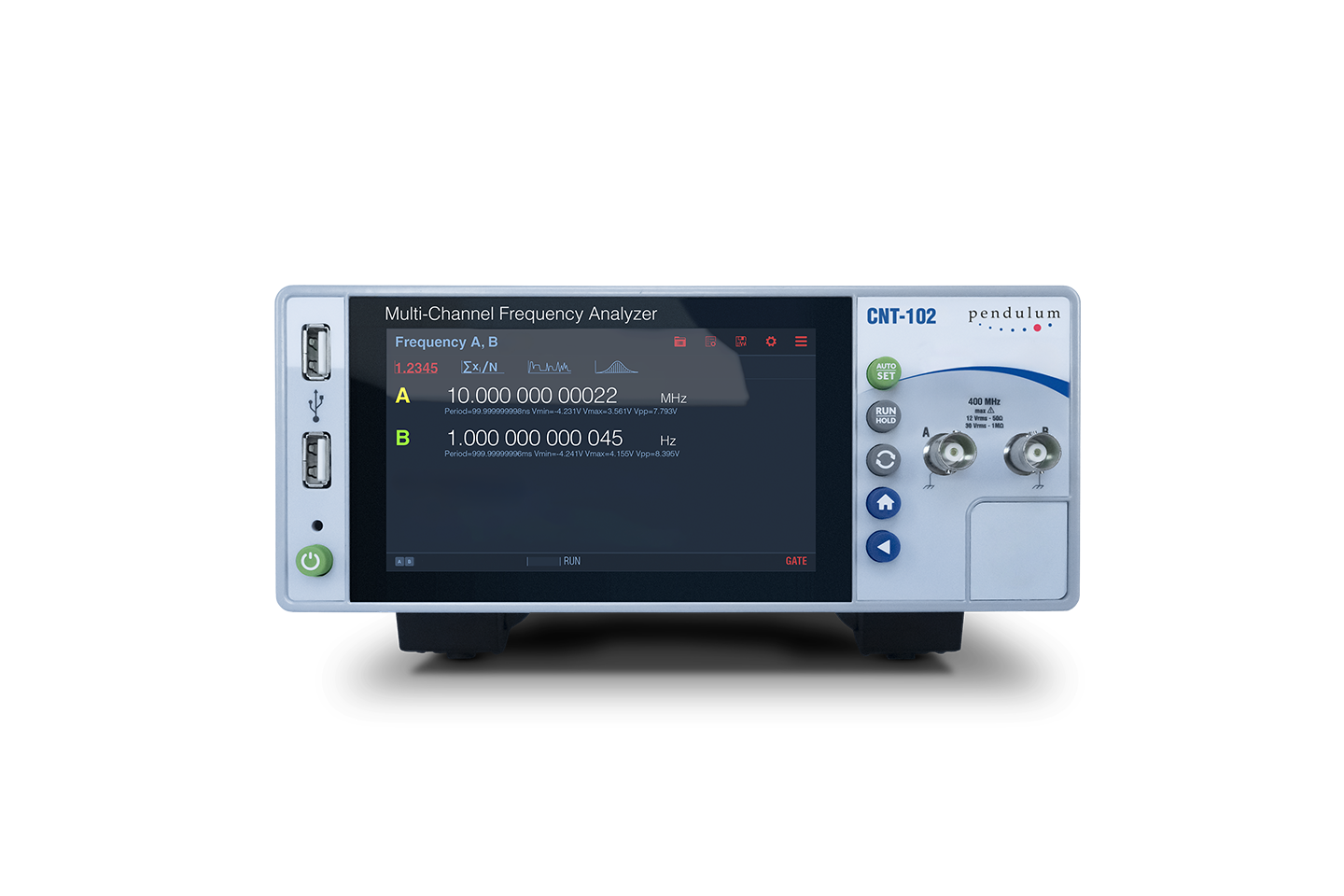

CNT-102 Multi-Channel Frequency Analyzer

The Pendulum CNT-102 is a new affordable model in the CNT-100 family for super-performance Multi-channel frequency and time-interval analysis in a bench-top unit. You can track parallel frequency, phase, or time simultaneously on 2 input channels on the large graphic screen. These instruments feature gap-free measurements, and have 14 ps resolution, up to 13 digits/s frequency resolution, and a measuring speed of 1M results/s. CNT-102 outperforms any competing Timer/Counter/Analyzer on the market.

Key features

Multi-channel Frequency Analyzer, featuring two 400 MHz inputs, with independent parallel timestamping of trigger events

  • High Single Period resolution, 14 ps per timestamp on two independent parallel inputs, corresponding to 20 ps resolution per complete period measurement
  • High Frequency resolution of up to 13 digits/s via statistical resolution improvement (regression line fitting)
  • High measurement speed of 1M meas./s on two independent parallel inputs
  • Result memory (RAM) is 32M measurements
  • Results can be permanently stored in internal 1GB Flash memory, on an external USB stick, or in a connected PC
  • Optional RF input to 3 or 10/15/20/24 GHz. The 10 GHz RF input HW is SW upgradable to 15, 20, and 24 GHz via SW licenses
  • Optional timebase oscillators include 2x OCXO
  • Communication interfaces include Ethernet, USB, and WLAN (via external USB-WiFi dongle)
  • Graphical UI showing both Numeric and Graphics (trend, modulation, distribution)
  • UI is operated via either a 5” touch screen, mouse, or web interface
